Multi-service security intelligent gateway

MG-X3500

1. Support the use of WeChat mini programs for quick and easy delivery, improving the efficiency of engineer construction;
2. Integrate WLAN management, VPN networking, behavior management, firewall and other functions to achieve integrated delivery;

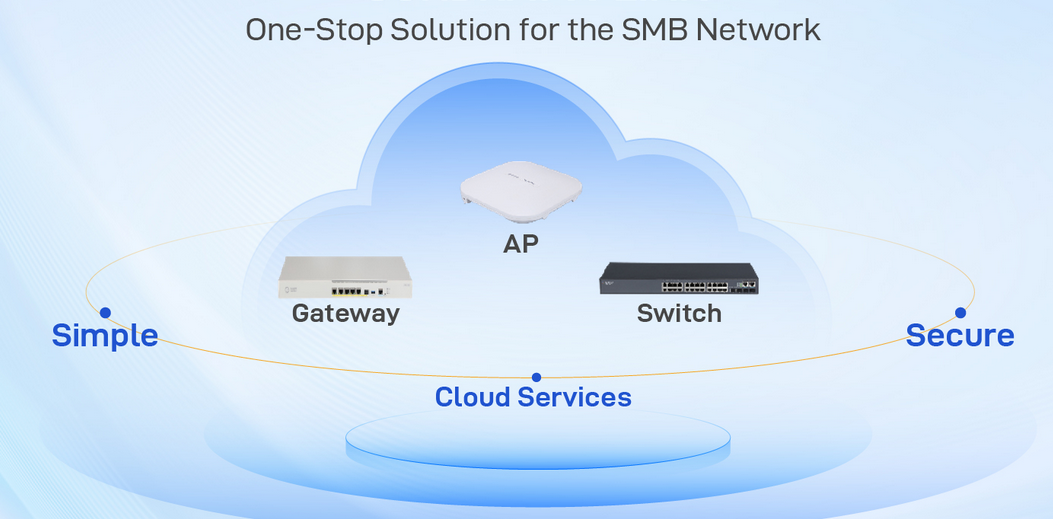

3. Having routing characteristics, integrating gateway and AC dual functions, meeting the deployment needs of small and medium-sized enterprises and multiple branch offices;
4. Built in application recognition library and massive URLs, it can accurately identify terminals and mainstream applications, and finely control permissions;
5. Support the allocation of different flow control strategies based on factors such as application, user, and time, and flexibly allocate bandwidth resources;
6. The built-in Portal service can implement authentication methods such as 802.1X, Portal, PSK, and supports dual factor authentication;
7. Support unified management of wired side networks, providing one-stop services to reduce network construction and maintenance management costs;
8. Provide a web visualization management backend, provide user and expert management modes, and improve IT operation and maintenance management efficiency.

Product Details

technical specifications
Model XMG-3500 Wireless Protocol 802.11a/b/g/n/ac/ax
Number of ports
5 Gigabit Ethernet ports;
1 Gigabit optical multiplexing port
Other interfaces
1 USB 3.0 port;
1 Console port

ESSID Quantity 16
Maximum management AP count of 500 (not distinguishing between ceiling and panel)
Number of concurrent terminals ≤ 2000
Number of certified accounts ≤ 1500


Routing function support
Gateway function support
Portal service support
Flow control strategy support
VPN remote networking support
Whole machine NAT performance (reference) 1600Mbps-1850Mbps
Input voltage 100V~240V AC
Power consumption<11.2W
Working temperature: 0 ℃~45 ℃
Storage temperature -40 ℃ to 70 ℃
Weight 2.57 kg
External dimensions (mm) 440 * 200 * 44
