数字示波器2通道Siglent 200 mhz

SDS1202X-E

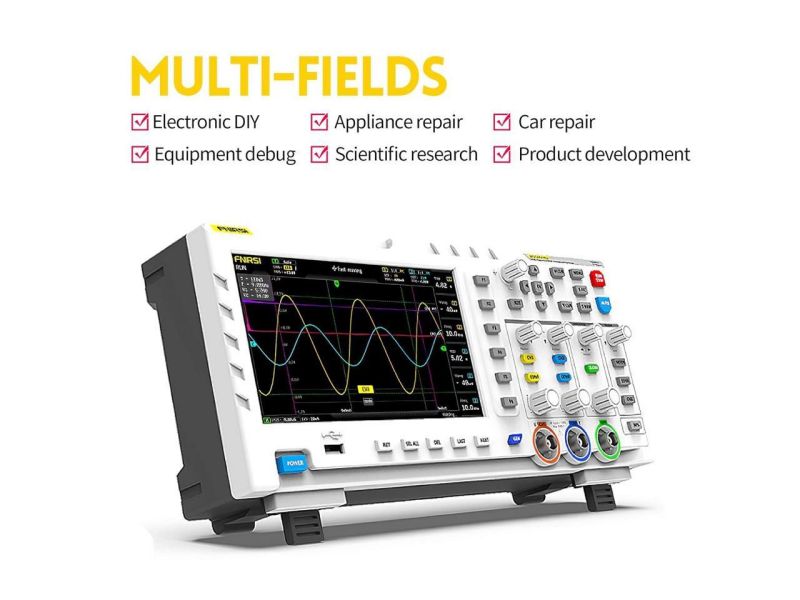

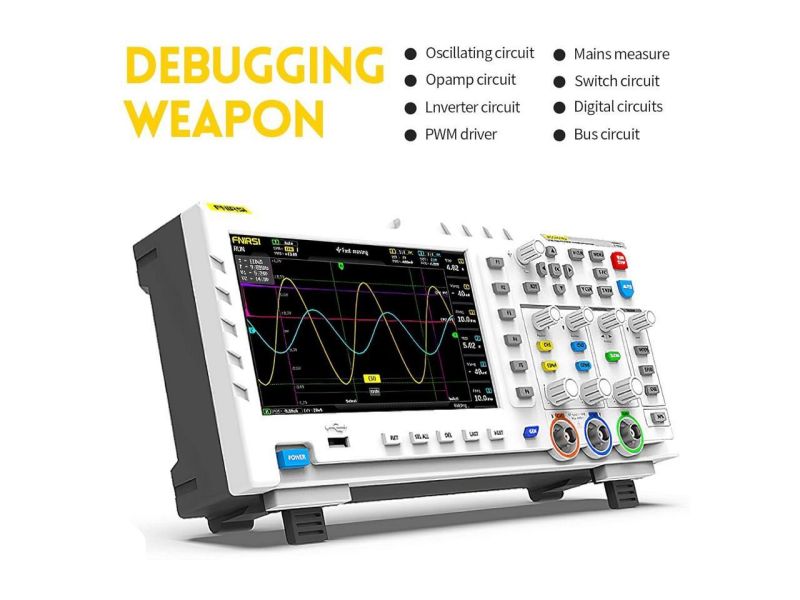

Professional Designed : Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
Function Signal Generator : Built-in DDS function signal generator and industry's original chopping output (@2.5VPP), all signal frequency steps are 1HZ, support 14 kinds of standard function signals and a customizable chopping signal, chopping the output divice intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized chopping signals.
Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.

产品详情

  • Math co-processor speeds front panel operation
  • Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
  • Low background noise and 500 V / div to 10 V / div voltage scales
  • Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
  • On-screen Bode plot and web-browser control (standard on 4 channel only)
  • WiFi control (optional on 4 channel only)
  • True measurement and math can use all 14 Mpts of memory
  • Large 7-inch TFT-LCD display with 800 * 480 resolution
  • 100 MHz-200 MHz
  • 2+EXT/4 CH
  • 14 Mpts Record length
  • 1 GSa/s sample rate
  • 1Mpts FFT
  • 16 Logic/MSO Optional on 4 Channel Only
