频谱分析仪9 kHz至2.1 GHz带免费跟踪发生器

EI-SSA3021X

All-Digital IF Technology
Frequency Range from 9 kHz up to 2.1 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
1 Hz Minimum Resolution Bandwidth (RBW)

产品详情

MAIN

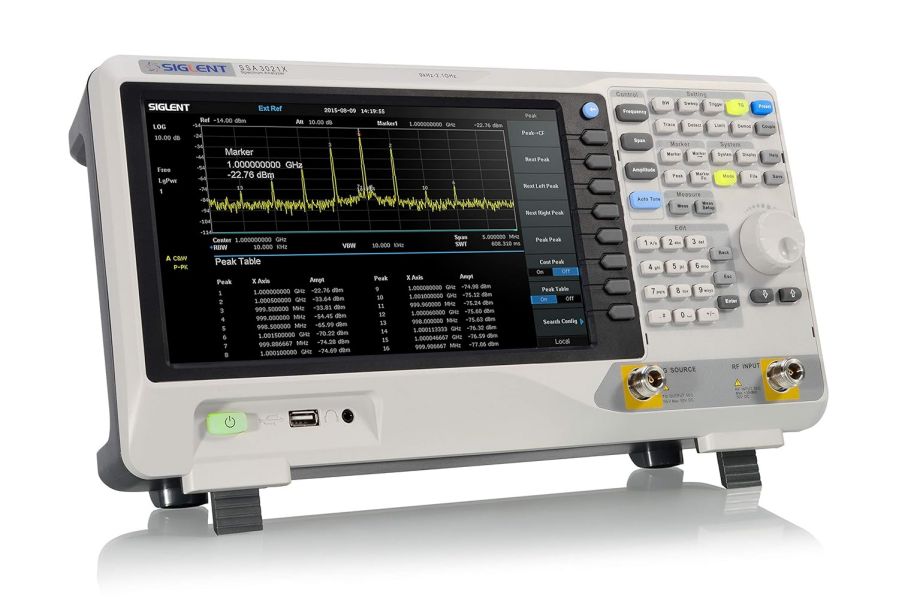

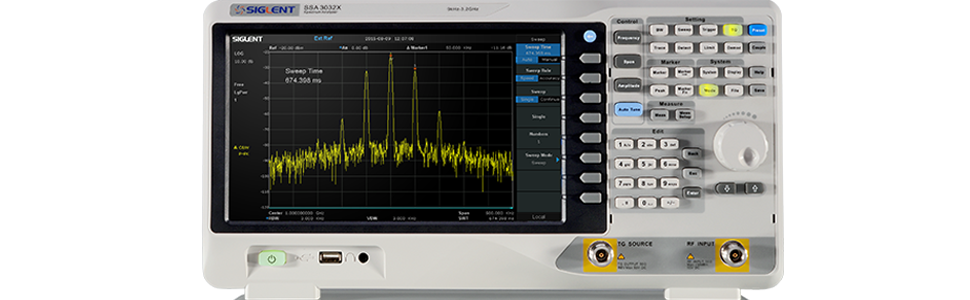

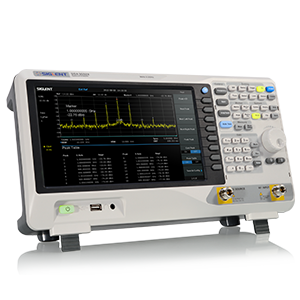

SSA3000X Series Spectrum Analyzers

Siglent’s SSA3000X series spectrum analyzers offer a frequency range of 9 kHz to 2.1/3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000s present a large, bright, easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.

LEFT

Key Features


  • All-Digital IF Technology
  • TG standard
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Standard Preamplifier
  • Reflection/VSWR Measurement Kit (Opt.*)
  • Advanced Measurement Kit/Waterfall Chart (Opt.*)
  • EMI Pre-compliance Measurements Kit (Opt.*)

1

2

-151 dBm Displayed Average Noise Level (RBW=10 Hz)

Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset

Easy to operate, Support four independent traces and cursors

Four selectable color-coded traces can be used for different functions (ie. Max Hold, Min Hold, Clear-Write, Math, Average, etc)

Four movable markers.

1 Hz Minimum Resolution Bandwidth (RBW)

RBW: 1 Hz – 1 MHz in 1-3-10 sequence.

(Minimum RBW depends on Frequency Span)

-151 dBm Displayed Average Noise Level (RBW=10 Hz)

Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset

Zero span and demodulation capabilities

Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements

On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X)

EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)

Zero span and demodulation capabilities

AM / FM demodulation with audio output jack.

Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements

Channel power, Adjacent channel power ratio, TIme domain power, Occupied BW, Third-order intercept, Spectrum monitor (waterfall)

On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X)

Available with or without directional coupler

EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)

Comes with EMI report software. Speeds measurement time, generates test reports
