iM11

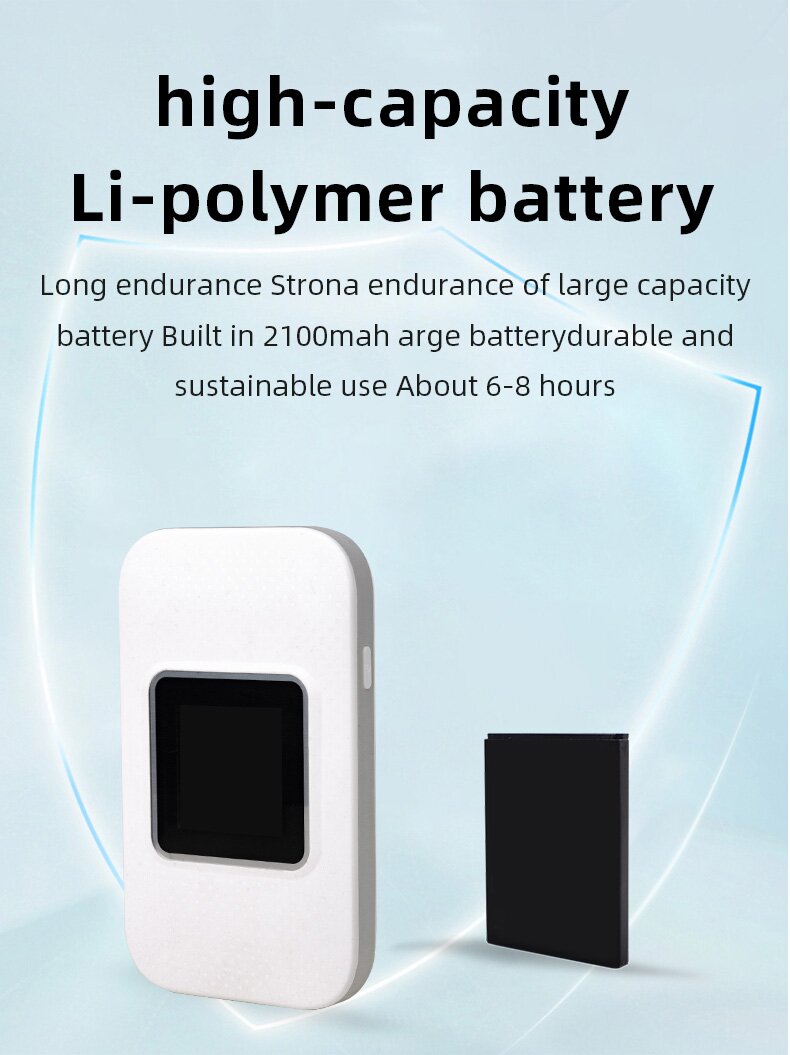

配备大容量电池,长续航；
高速网络，多频段兼容；

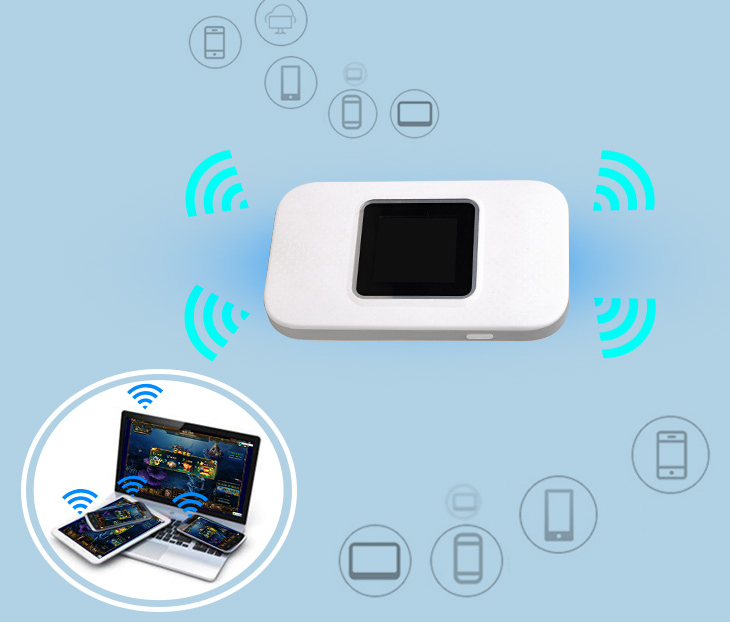

多终端接入。
参数 /Spec
Hardware Platform | Chipset | ASR1803 |
Memory | 128Mb Norflash SDR 256Mbit | |
Technical Standard | LTE TDD/FDD | 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps |
WCDMA | 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps | |
Power Class | LTE/WCDMA | Power Class 3 |
External Interface | SIM/USIM Card Slot | Standard 6 PIN SIM card interface, compaliant with 3GPP 31.101 and 31.102 |
Power Interface | Micro USB 2.0 or Type-C USB | |
Antenna | LTE/WCDMA | Internal |
WiFi Antenna | Internal | |
Buttons | Power Button | Yes |
Reset Button | Yes | |
Display | LCD Display Screen | 1.46 inch 128*128 TFT |
Wi-Fi | Sharing | Up to 10 devices |
SSID Broadcast | Yes | |
WiFi Security | WPA2-PSK，WPA-WPA2 Mixed，WEP | |
WiFi Standard | 802.11b/g/n,Up to 72Mbps | |
WiFi Band | 2.4GHz | |
Battery | Capability | 2100/3000mAh Lithium ion Battery |
Working Time | 10 hours | |
Charging Time | 5-8 hours | |
Input/Output | 5V/1000mA | |
Setting | Quick Setup | support |
Dashboard（Device Status） | support | |
Internet Settings | support | |
Home Network Settings | support | |
Wireless Settings | support | |
Router Settings | support | |
System Settings | support | |
SMS | support | |
System upgrade | Firmware upgrade | support |
Language | Chinese / English | Default English,Support Multi-Language Customization |
Weight | Weight | 89 g（Including battery and package） |
Dimensions(mm) | Dimension | 98mm*59mm*16mm |
System | Microsoft OS | Windows2000/XP/Vista/7/8/10 |
Mac OS | Mac OS X10.6 and above version | |
Android | Android 4.2 or Later | |
Customization | Gift Box Customization | Supported |
UI Customization | Supported | |
Environment | Working Temperature | -10℃ to 45℃ |
Storage Temperature | -30℃ to 80℃ |
Frequency Band 1 | LTE:B1/3/5/7/8/20/28/38/40/41 WCDMA:B1/5/8 |
Frequency Band 2 | LTE:B1/2/4/5/7/28AB WCDMA:B1/2/5 |
